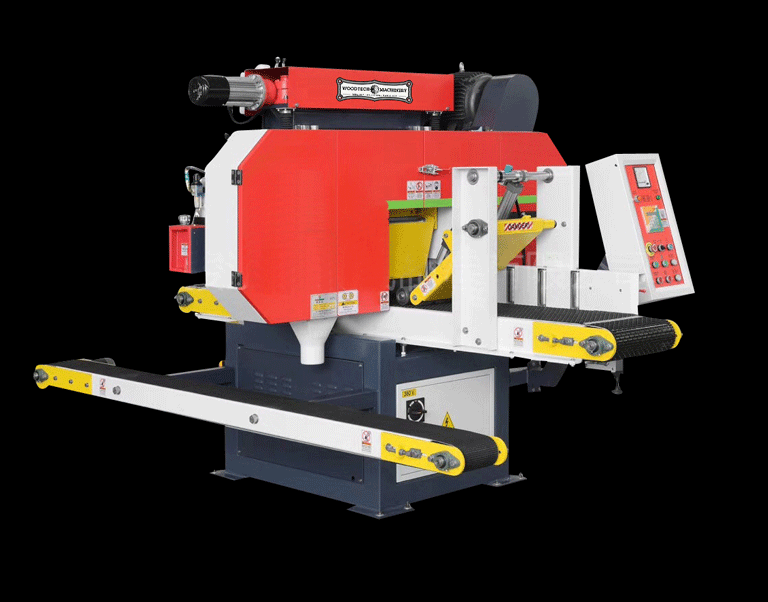

Horizontal Band Saw


Model Name:
HD Horizontal Band Saw
Max. workpiece size: 300mm
Thickness of production board: 5–160mm
Width of conveyor belt: 375mm
Diameter of saw wheel: 711mm
Feeding speed: 0-15m/min
Hydraulic pressure: 50-60kg/cm
Size of saw blade: 185”
Length, 2” wide, 1.6mm thick

Electrical Requirements:
Voltage: 460V/60 HZ/3 phase
Full electrical load: 18.5 KW
Overall dimension: 2800L x 2200W x 2000H
