• In-Line Finish Sander

    Model: WTM-UVS Series

    Name:
    In-line finish sanding

    :
    Sanding for PU, UV, PE

    Specification:
    1. Available in  24”, 36”, 51” Widths
    2. Workpiece thickness: 2-80mm
    3. : 5-20m/min
    4. Available in single or double
    5. : 800mm
    7. belt thickness- 5mm
    8. Sanding belt size: 60” Length
    9. Schneider electronics
    10. Variable speed on sanding heads
    11. Cleaning brush on the output side

    :
    : 460 Volt/60Hz/3 Phase

    View Page

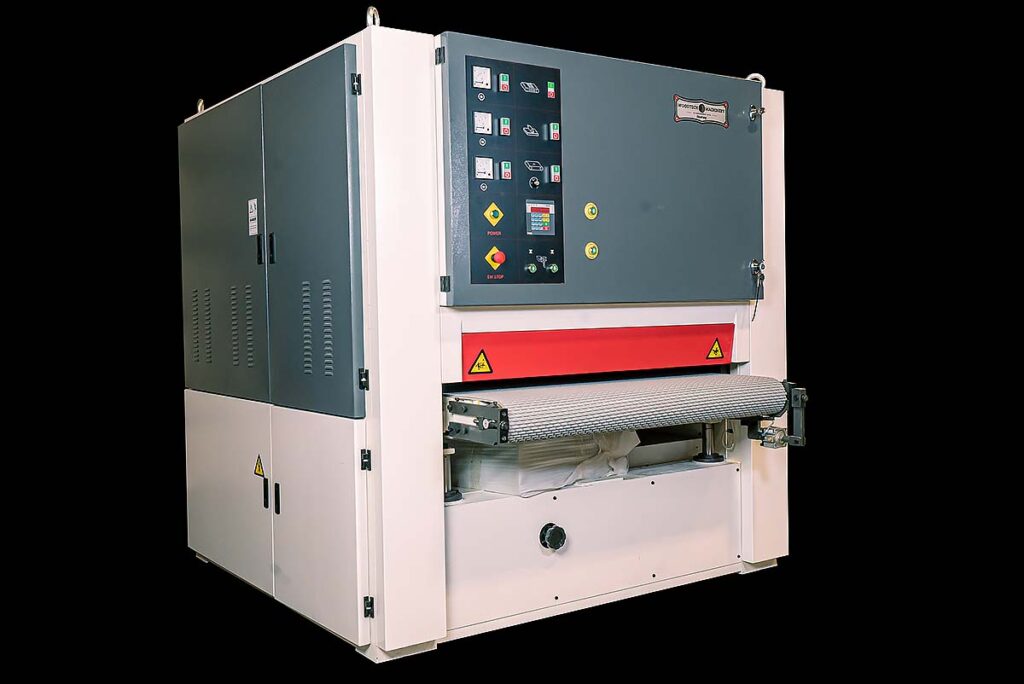

  • Wide Belt Sanders

    WTM-QSG Series Top Surface Sander Triple – Belt Sander Roller + Combination

    :
    Working widths: 24”, 42”, 51”Service side: left
    Enclosed MotorsBrush unit for cleaning panels after

    General Technical Data:
    WTM-QSG is a with a for the thickness setting.
    : 3/16” – 4”
    Minimum working length: 13”
    Feeding speed: 0-80 F/min
    Compressed air consumption: 1.5 CBM/min
    Overall dimension: 94”x82x80”
    Drives from main motors to sanding heads are run with V-belts and pulleys, Heavy Duty disk brakes for emergency stop.

    Pressure Units:
    Pressure units to hold the work pieces on the feed belt; are positioned in front and rear of each sanding head: independent variable pressure control. Press rollers assure the flatness of the boards for an even sanding is suitable for short piecesSteel press shoes are optional.
    1st head roller is steel with helical grooves for cooling.
    -Hard Rubber roller is . (optional)
    -Oscillating air jet blowers for sanding belt cleaning, complete with dust hood.
    2nd head roller is Rubber with helical grooves for cooling.
    -Steel roller is available. (optional)
    -Oscillating air jet blowers for sanding belt cleaning, complete with dust hood.
    The 3rd sanding head is a of roller and pad.
    -Pad can be adjusted up and down.
    -Oscillating air jet blowers for sanding belt cleaning, complete with dust hood.

    :
    Operating voltage: 460 Volt/60Hz/3 Phase
    ** Also available in a Double Head configuration

    View Page

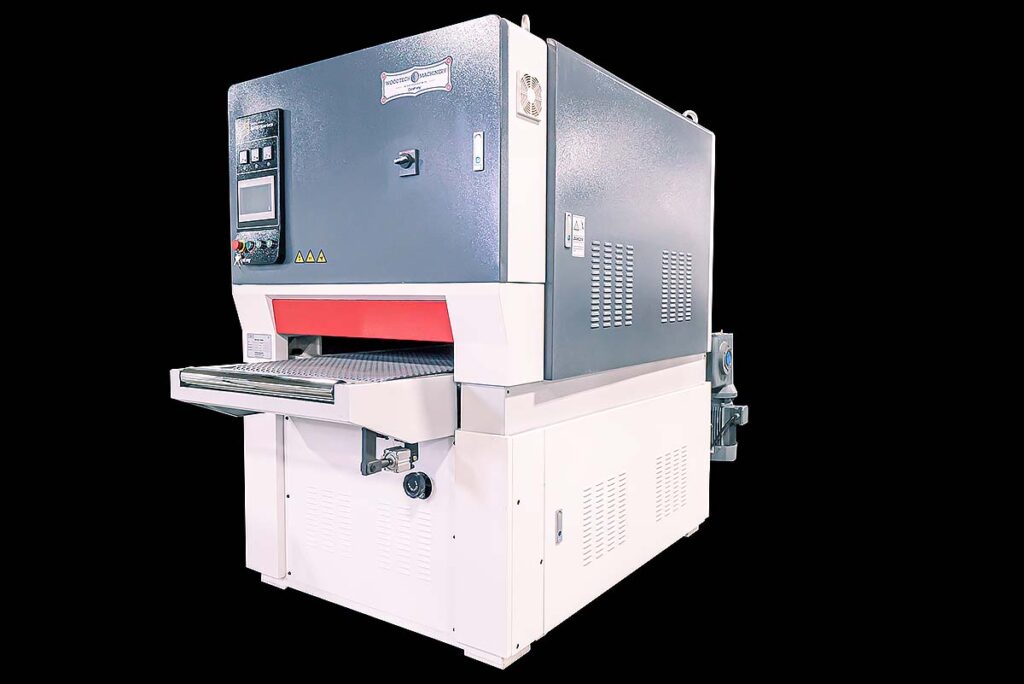

  • Wide Belt Sanders

    Heavy Duty 4 sided Moulder
    WTM-DSG Series Bottom Surface Sander
    Triple-belt sander roller + combination

    : Working : 24”, 42”, 51”
    Service side: left Enclosed Motors
    for cleaning after

    General technical data: WTM-DSG machine is a constant pass-line, bottom sanding machine, it is specially designed for a sanding line with a fixed height.Working thickness: 3/16” – 4”
    Minimum working length: 13”
    Feeding speed: 0-80 F/min
    Compressed : 1.5 CBM/min
    Overall dimension: 94”x82x80”
    Drives from main motors to sanding heads are run with V-belts and pulleys, disk brakes for emergency stop.

    Pressure Units: Pressure units to hold the work pieces on the feed belt; are positioned in front and rear of each sanding head: independent variable pressure control.
    Press rollers assure the flatness of the boards for an even sanding Is suitable for short piecesSteel press shoes are optional.
    1st head is steel with helical grooves for cooling.
    -Hard Rubber roller is available. (optional)
    -Oscillating air jet blowers for sanding belt cleaning, complete with dust hood.
    2nd head roller is Rubber with helical grooves for cooling.
    -Steel roller is available. (optional)
    -Oscillating air jet blowers for sanding belt cleaning, complete with dust hood.
    The 3rd sanding head is a combination of roller and pad.
    -Pad can be adjusted up and down.
    -Oscillating air jet blowers for sanding belt cleaning, complete with dust hood.

    Electrical Requirements:Operating voltage: 460 Volt/60Hz/3
    ** Also available in a Double Head configuration

    View Page

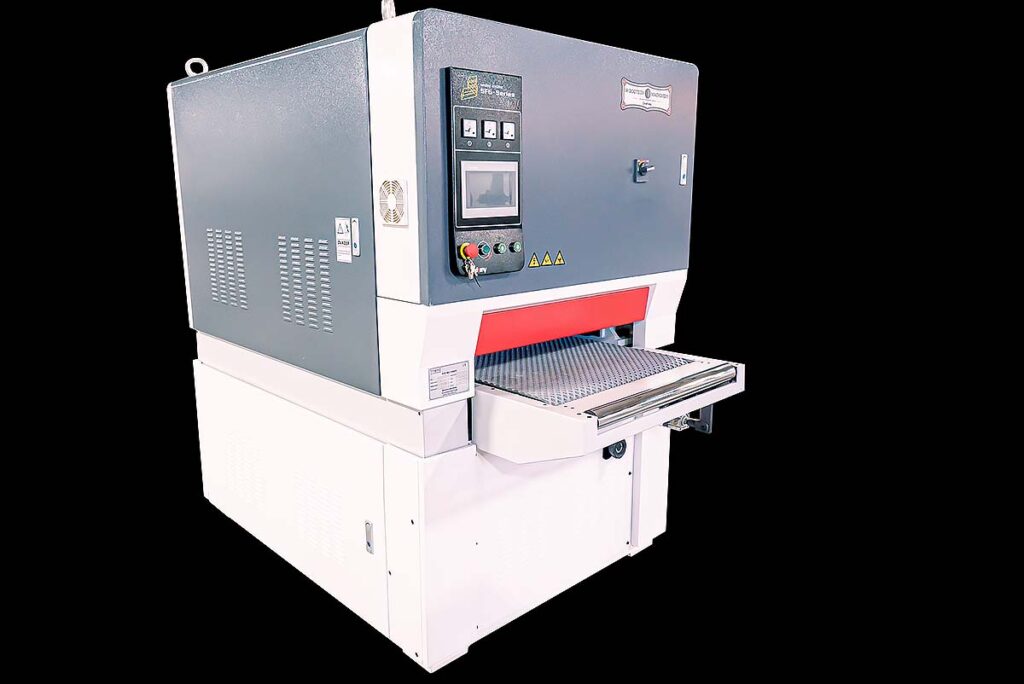

  • Wide Belt Sander

    WTM-FSG Series Constant Pass-Line, Top Surface Sander
    Triple-belt sander roller + combination

    Features:
    Working widths: 24”, 42”, 51”
    : left

    Brush unit for cleaning panels after sanding

    :
    WTM-FSG series machine is a constant pass-line sanding machine, it is specially designed for a sanding line with a fixed height
    : 3/16” – 4”
    length: 13”Feeding speed: 0-80 F/min
    Compressed air consumption: 1.5 CBM/min
    Overall dimension: 94”x82x80”
    Drives from main motors to sanding heads are run with V-belts and pulleys, Heavy Duty disk brakes for emergency stop.

    Pressure Units:
    Pressure units to hold the work pieces on the feed belt; are positioned in front and rear of each sanding head: independent variable pressure control.Press rollers assure the flatness of the boards for an even sandingIs suitable for short piecesSteel press shoes are optional.
    1st head is steel with helical grooves for cooling.-Hard Rubber roller is . (optional)-Oscillating air jet blowers for sanding belt cleaning, complete with dust hood.
    2nd head roller is Rubber with helical grooves for cooling.-Steel roller is available. (optional)-Oscillating air jet blowers for sanding belt cleaning, complete with dust hood.
    The 3rd sanding head is a combination of roller and pad.-Pad can be adjusted up and down.-Oscillating air jet blowers for sanding belt cleaning, complete with dust hood.

    Requirements:
    Operating voltage: 460 Volt/60Hz/3
    ** Also available in a Double
