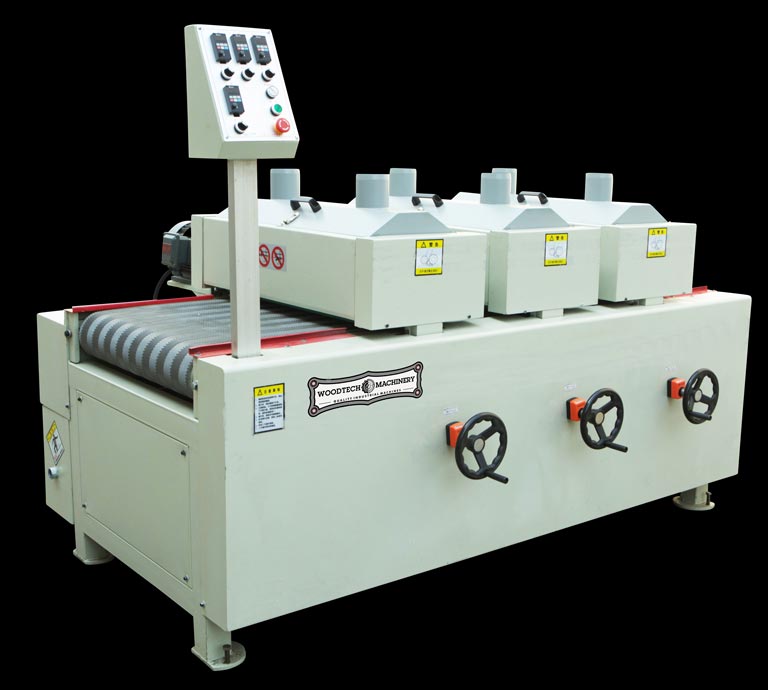

Denibbing Machine | Industrial Woodworking Machines by WoodTech

Model: WTM-UVDB Series

Model Name:
Denibbing/sanding machine. This machine is for denibbing/sanding of wood furniture, flooring, panels etc.

Specifications:
1. Available in 24”, 36”, 51” Widths
2. Work piece thickness: 2-80mm
3. Feeding speed: 5-20m/min
4. Available in 2-6 head configurations
5. Working height: 800mm

Features:
1. Feed belt thickness 5mm, high temperature resistance fish bone belt.
2. Schneider Electronics
3. Delta frequency converter control each brushing heads individually
4. Adjustable height pressure roller- 2 rolls per head
5. Height counters with individual height adjustment
6. Multiple sanding grits, and brush lengths available
Optional – Precision automatic lifting motor for height adjustment

Electrical Requirements:
Operating voltage: 460 Volt/60Hz/3 Phase
