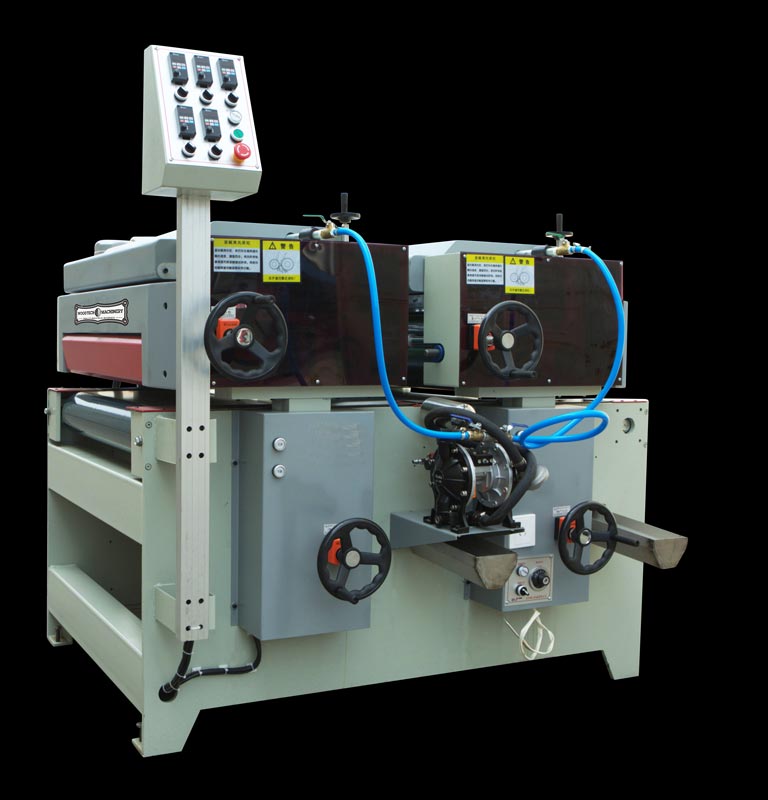

Double Head Roll Coater

Double Roll Coater

Model: WTM-UVRCD series

Application:
Roll coating for finish or stain on wood furniture, flooring, panels etc.

Specifications:
1. Available in  24”, 36”, 51” Widths
2. Work piece thickness: 2-80mm
3. Min working length: 300mm
4. Feeding speed: 5-20m/min
5. Available in double, or triple head configuration
6. Working height: 800mm

Features:
1. Italian JMC Aluminum alloy reduction gear drive.
2. Schneider electronics
3. High-quality coupling transmission. NSK Japanese bearings.
4. Conveyor belt is a 3MM anti-sliding PVC conveyor belt
5. Precision automatic 0.75kw lifting motor for height adjustment
6. All adjustments are fitted with individual counters
7. Rubber or sponge heads available per customers need
Optional – Double pumps and drains available for individual head use.
Electrical RequirementsOperating voltage: 460 Volt/60Hz/3 Phase
